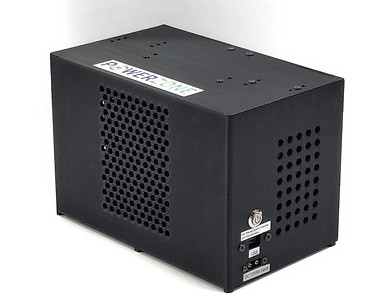

Hydrogen Fuel Cell System

PZ-100H

300W System.jpeg
What's Included
  • Fuel Cell Stack

  • Control Box

  • USB Cable

  • Intake & Exhaust Valve

  • 14AWG Connections Wire - Input & Output

  • Pressure Sensor

  • Tube Connector

  • Tube

Features
  • Cost-Effective

  • Customizable

  • Versatility

  • Portable

  • Low cost per kW

  • High Quality

  • High Performance

  • Proprietary Formulation

  • Compact and Lightweight

Applications
  • Telecom Power

  • Drone

  • Bicycle

  • Backup power

  • Emergency power

Specifications
Output Power
100W
Output Current
9.5 A (Max) @ 13.2V
Fuel type
Hydrogen gas
Fuel composition
99.9% gaseous hydrogen gas or better
Start-up Time
10-20sec
Weight (FC Unit)
300g
Max dimensions (FC Unit)
100mm (W) × 85mm (H) × 100mm (D)
Weight (Controller)
250g
Max dimensions (Controller)
120mm (W) × 50mm (H) × 120mm (D)
Output Voltage
13.2V -22V
